Viair 150 PSI 1.59 CFM Fast-Fill Air Source kit with 280C Compressor & 2 Gallon Tank
Viair 30% Duty Cycle @100 PSI 19 AMP Draw 150 PSI Max Air Source Kit



Alternative Views:


List Price: $339.35
Our Price: $237.55
Savings: $101.80


Availability:: Available
Product Code: 20005
Qty:

Description

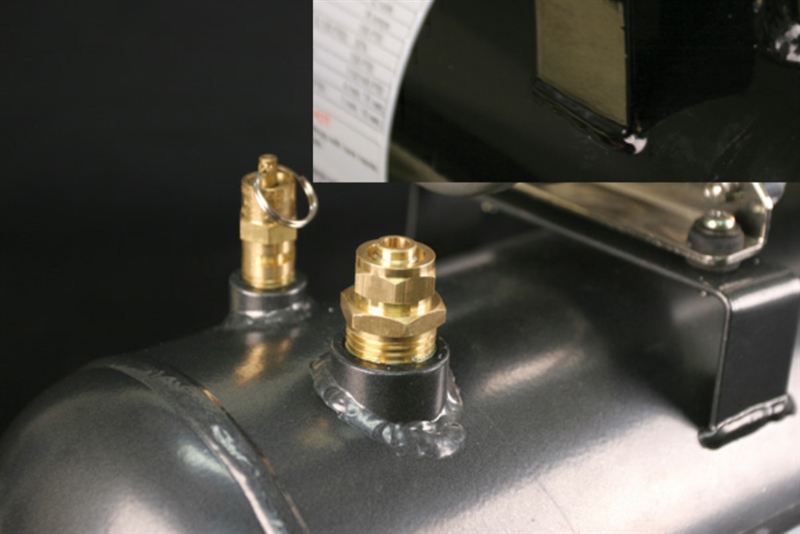

Viair 20003 150 PSI Air Source Kits come with a powerful, 30% duty cycle, 280C VIAIR compressor mounted on a 150 PSI-rated 2.0 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20005 / 110-150 PSI). The 150 PSI Air Source Kit comes complete with a 1/4" NPT brass drain cock, 1/4" NPT ASME coded and certified safety valve, 1/2" NPT port compression fitting for 3/8" (I.D.) air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
The coil hose with blow-off gun is not included with this kit, sold separately

Features

  • 280C Pewter Air Compressor
  • 2.0 Gallon Tank
  • 110/145 PSI sealed Pressure Switch (110 ON, 145 OFF)
  • 175 PSI Safety Valve
  • Drain Cock
  • Stainless Steel Braided Hose With In-built Check Valve
Specifications
  • 12V DC
  • Permanent Magnetic Motor
  • Duty Cycle 30% @100 PSI
  • Max Pressure :150 PSI
  • Max AMP Draw : 19
  • Ingress Protection Rating : IP54
  • Dimensions 18.9"L X 5.9"W X 13.7"H
Fill Rates


Click Here
to Download User Manual

Click Here For Dimensional Drawing
