Viair Dual 280C Onboard Air System 150PSI Max 2.5 Gallon Tank - 20011
Viair Dual 280C Onboard Air System



Alternative Views:


List Price: $1,080.95
Our Price: $859.95
Savings: $221.00


Availability:: Avilable
Product Code: 20011
Qty:

Description


Viair Dual 280C Compressor Onboard Air System (12V, 150PSI,2.96 CFM 2 Compressors, 2.5 Gallon tank) fills up to 35" Tires

VIAIR’s Dual 280C Onboard Air System is a pre-packaged compressed air solution that provides two 280C, 30% duty cycle compressors, a 2.5 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note: Use thread sealant for proper installation.Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 12 ~ 15 ft. lbs.


Features
- 2.5 Gallon 150 PSI VIAIR Air Tank
- (2) 280C VIAIR Compressors
- 30ft. Coil Hose with Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (110 PSI on, 145 PSI off)
- 150 PSI Illuminated Dash Panel Gauge
- (2) 40-amp Relays
- Inline Fuse Holder
- 1/4” Quick Connect Coupler (M)
- 1/4” 175 PSI Safety Valve
- 1/4” Drain Cock
- (2) 1/8” BSP to 1/4” NPT
- (4) 1/4” Compression Fittings
- 5 Pc. 1/4” NPT Plugs Kit
- 6-Port Billet Manifold with Mounting Bracket (1/4”)
- (2) 15ft. 1/4” Air Line Included
- Electrical Connections

* All Fittings are NPT rated unless otherwise noted.
** Wiring harness NOT included.


Specifications

  • 12V DC
  • Permanent Magnetic Motor
  • Duty Cycle : 30% @ 100 PSI
  • Max Working Pressure: 150 PSI
  • Max Amp Draw: 33 AMPS
  • Ingress Protection: IP54

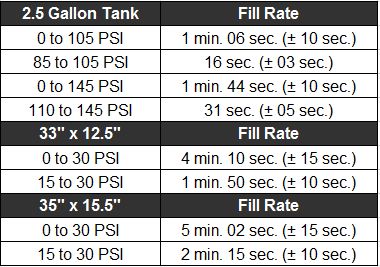

Fill Rates


Click Here to Download Manual

Click Here
For Dimensional Drawing

Click Here For Wiring Diagram

Click Here For Plumbing Diagram
