Viair High Speed 2on2 Bolt-on platform For Jeep JK 2007-2011 with 2-400C 150 PSI/ 4.55 CFM Compressors (PN 30001)
Viair 30001 PN Bolt on 2on2 Platform



List Price: $1,188.95
Our Price: $909.95
Savings: $279.00


Availability:: Usually Ships in 1 to 2 Business Days
Product Code: 30001
Qty:

Description

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket – 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.

Note: 2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.

Feature

Pre-installed:
- 2.0 Gallon 5-Port Air Tank
- (2) 400C Air Compressors
- (2) 1/4” Stainless Steel Braided Leader Hoses
- (2) 1/4” JIC Fittings on Leader Hoses
- 1/4” NPT Swivel to 1/4” NPT Swivel
- T-Fitting (Remote Mount Filter)
- 1/4” NPT Drain Cock
- Sealed Pressure Switch with Delphi Connectors
(110 PSI On, 145 PSI Off)
- (2) Loomed Compressor Wires Terminated with Delphi Connectors
- Inline Fuse Holder with Fuse
- 1/4” NPT Safety Valve
- (4) 1/4” NPT M Recessed Plugs
Included in Kit:
- Crossmember Mounting Bracket
- 60-amp Fuse & Fuse Holder
- 80-amp Relay
- (2) 1/4” BSP Adapters for Air Lockers
- T-Fitting 1/4" NPT F x 1/4" NPT F x 1/4" NPT M
- 1/8" to 1/4" NPT Reducer
- Wiring Harness with Delphi Connectors
- (2) Delphi Connector Plug Kits
- Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
- Air Filter Housing with Installed Element
- (2) Replacement Air Filter Elements
- Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
- Air Pressure Regulator
- 15ft. DOT Air Line

Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 59 Amps
- Ingress Protection Rating: IP67
- Dimensions: 18.5"L x 5.9"W x 13.5"H

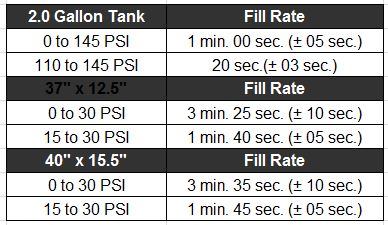

Fill Rates


User Manual
Dimensional Drawings
Wiring Diagram

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

*Jeep is a registered trademark of FCA US LLC and is used for identification purposes only. FCA US LLC. does not sponsor or approve this product and is not affiliated or connected in any manner with VIAIR Corporation.
