Viair High Speed 2on2 Bolt-on platform For Universal with 2-400C 150 PSI/ 4.55 CFM Compressors (PN 30016))
Viair 30001 PN Bolt on 2on2 Platform universal without brackets



List Price: $1,116.95
Our Price: $839.95
Savings: $277.00


Availability:: Usually Ships in 1 to 2 Business Days
Product Code: 30016
Qty:

Description

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. 2ON2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.

Note: 2on2 Bolt-On Platform systems in universal models are not equipped with a crossmember mounting bracket.

Feature

Pre-installed:
- 2.0 Gallon 5-Port Air Tank
- (2) 400C Air Compressors
- (2) 1/4” Stainless Steel Braided Leader Hoses
- (2) 1/4” JIC Fittings on Leader Hoses
- 1/4” NPT Swivel to 1/4” NPT Swivel
- T-Fitting (Remote Mount Filter)
- 1/4” NPT Drain Cock
- Sealed Pressure Switch with Delphi Connectors
(110 PSI On, 145 PSI Off)
- (2) Loomed Compressor Wires Terminated with Delphi Connectors
- Inline Fuse Holder with Fuse
- 1/4” NPT Safety Valve
- (4) 1/4” NPT M Recessed Plugs
Included in Kit:
- 60-amp Fuse & Fuse Holder
- 80-amp Relay
- (2) 1/4” BSP Adapters for Air Lockers
- T-Fitting 1/4" NPT F x 1/4" NPT F x 1/4" NPT M
- 1/8" to 1/4" NPT Reducer
- Wiring Harness with Delphi Connectors
- (2) Delphi Connector Plug Kits
- Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
- Air Filter Housing with Installed Element
- (2) Replacement Air Filter Elements
- Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
- Air Pressure Regulator
- 15ft. DOT Air Line

Specifications

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 59 Amps
- Ingress Protection Rating: IP67
- Dimensions: 18.5"L x 5.9"W x 13.5"H

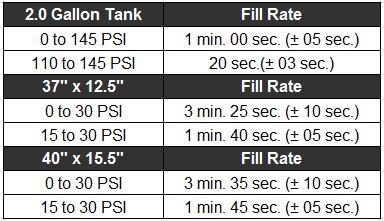

Fill Rates


User Manual
Dimensional Drawings
Wiring Diagram
