Home > Viair ADA Systems >

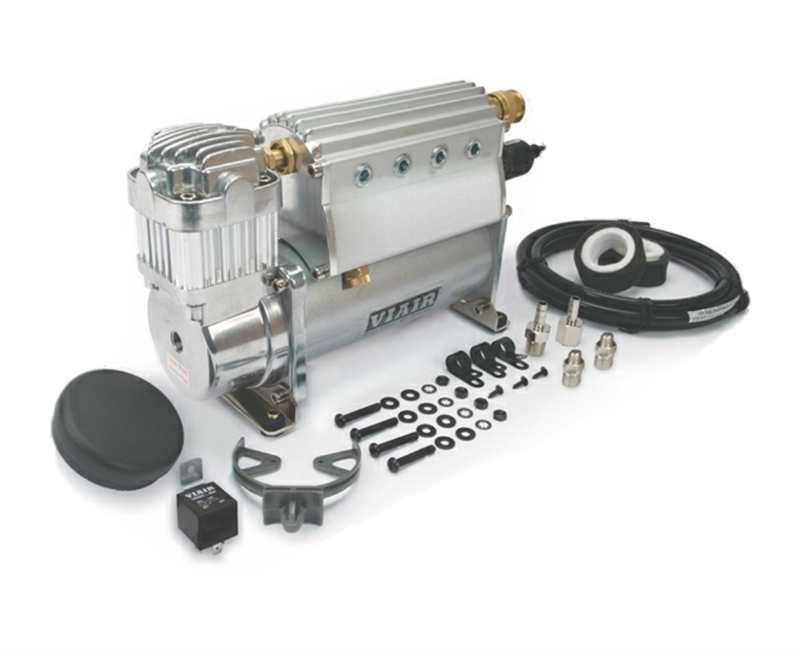

Viair Heavy Duty ADA System, Base Model Kit (P/N 42047)
Viair 40045, 40047 ADA System



List Price: $530.95
Our Price: $449.95
Savings: $81.00



Availability:: Usually Ships in 1 to 2 Days
Product Code: 42047
Qty:

Description


Viair Heavy Duty Automatic Deployment Air System 150 PSI Max, 2.30 CFM Base Model Without Tire Inflation Kit, Requires Tire Inflation kit. does Not Come with Harness.

VIAIR Corporation is proud to offer our new Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact air locker and tire inflation station using a 400C (Heavy Duty) compressor at its core.


Note: P/N 42045 should not be used for Load Leveling. P/N 42047 should not be used for Air Lockers

Features:

- 400C Compressor
- Extruded Aluminum Air Tank (12-port)
- Pre-installed Safety Valve
- Pre-installed 1/8” NPT Drain Cock
- Pre-installed Safety Valve
- Pre-installed 110/145 PSI Pressure Switch (P/N 42047)
- (8) Pre-installed 1/4” NPT Recessed Port Plugs
- Pre-installed Quick Connect Coupler
- 40-amp Relay
- (2) 1/4” NPT to 1/8” BSP Adapters
- 1” NPT M Barbed Fitting for 1/4” Air Line
- 1” NPT F Barbed Fitting for 1/4” Air Line
- Coiled Air Line (For Remote Mount Air Filter Installation)
- Air Filter Housing
- (2) Replacement Air Filter Elements
- Mounting Hardware

Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 30 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H

Fill Rates


User Manual
Dimensional Drawings
Wiring Diagram
