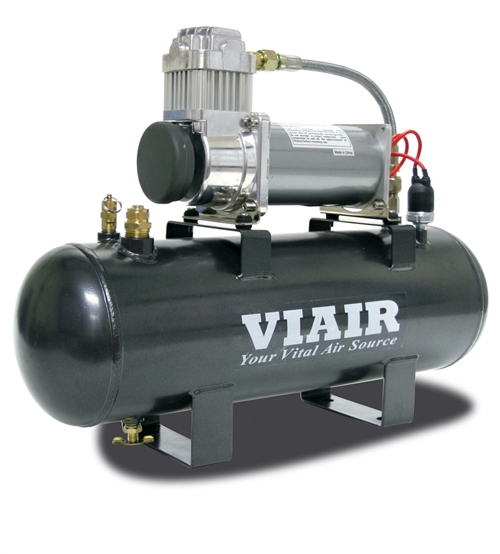

Air Source Kits (ASK) provide an all-in-one air source solution in one
of four different part numbers, meant specifically for air horns and
pneumatic needs. VIAIR Air Source Kits are available
with either a 1.5 gallon (P/N 20003) or 2.0 gallon (P/Ns 20005, 20007,
20008) air tank rated to
either 150 PSI or 200 PSI. Air Source kits are
equipped with a 150 PSI or 200 PSI-rated compressor mounted atop the air
tank and are equipped
with a drain valve, properly rated safety valve, appropriately rated
pressure switch, and a 1/2-inch NPT outlet port with compression fitting
that is 3/8-inch (I.D.) air line-ready, all factory installed.
Note: • Always operate the compressor at
or below the MAXIMUM PRESSURE RATING of the air compressor. Always
observe the MAXIMUM DUTY CYCLE of the air compressor. Operation
exceeding maximum pressure ratings and/or duty cycle will result in
damage to the air compressor.
