Air Lift Performance ALP4 Air Management, 1/4" Air line (NO Tank, No Air Compressor) - 27480
Product Description
The
ALP4 air management system redefines what’s possible for air suspension
control, combining cutting-edge hardware with smarter, more seamless

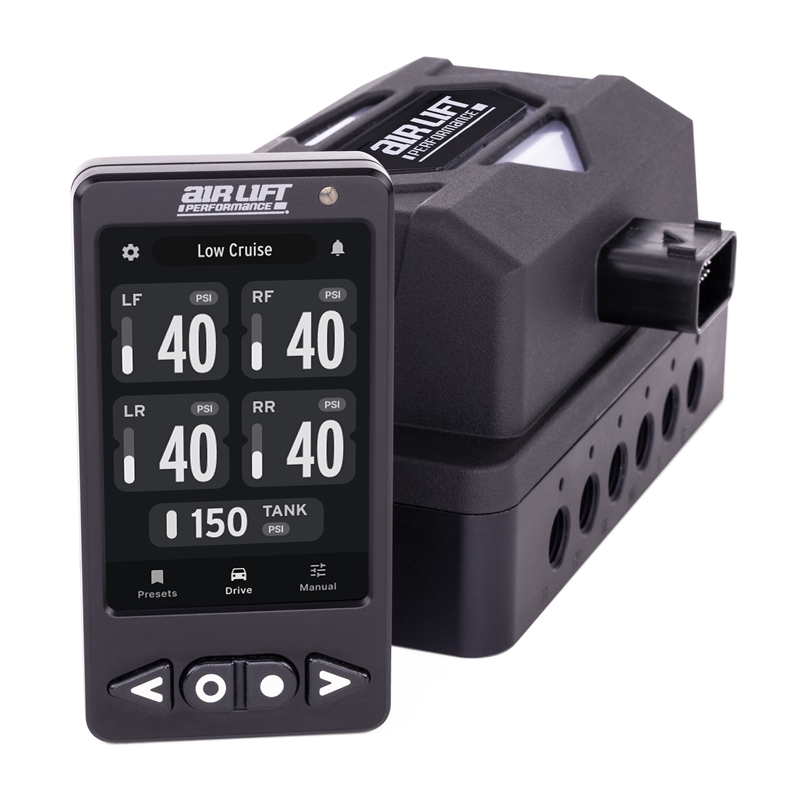

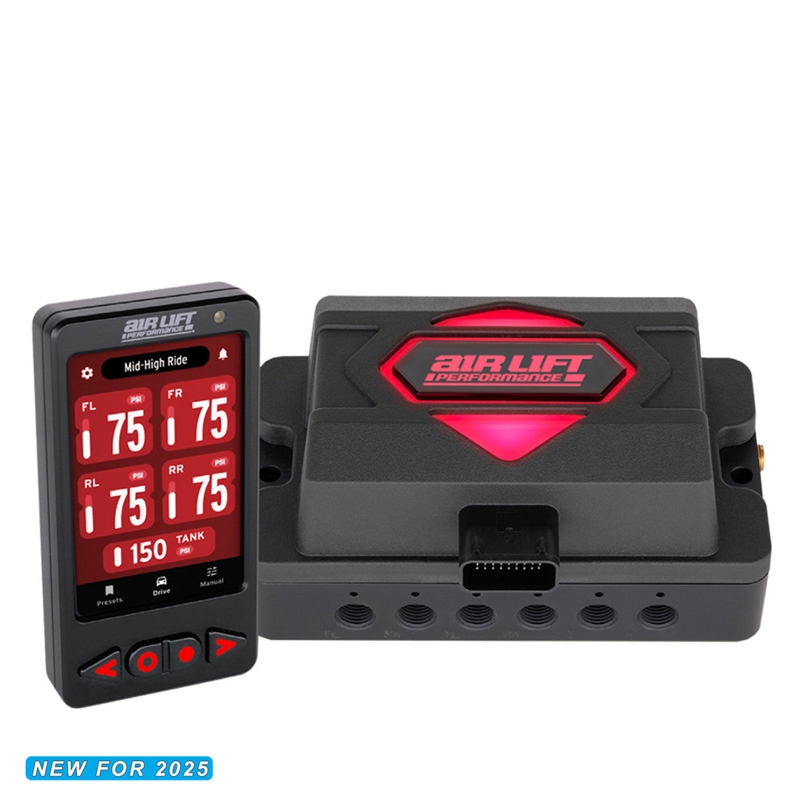

functionality. This system features a compact, all-in-one manifold,
which houses the ECU, solenoids, and pressure sensors, crafted from
anodized black billet aluminum for durability and a sleek, show-ready

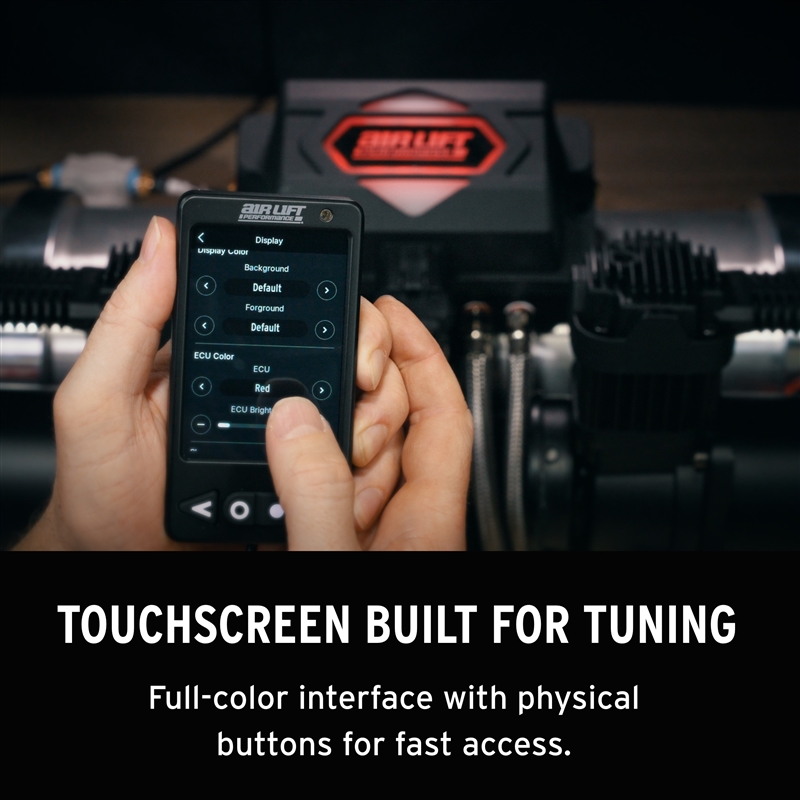

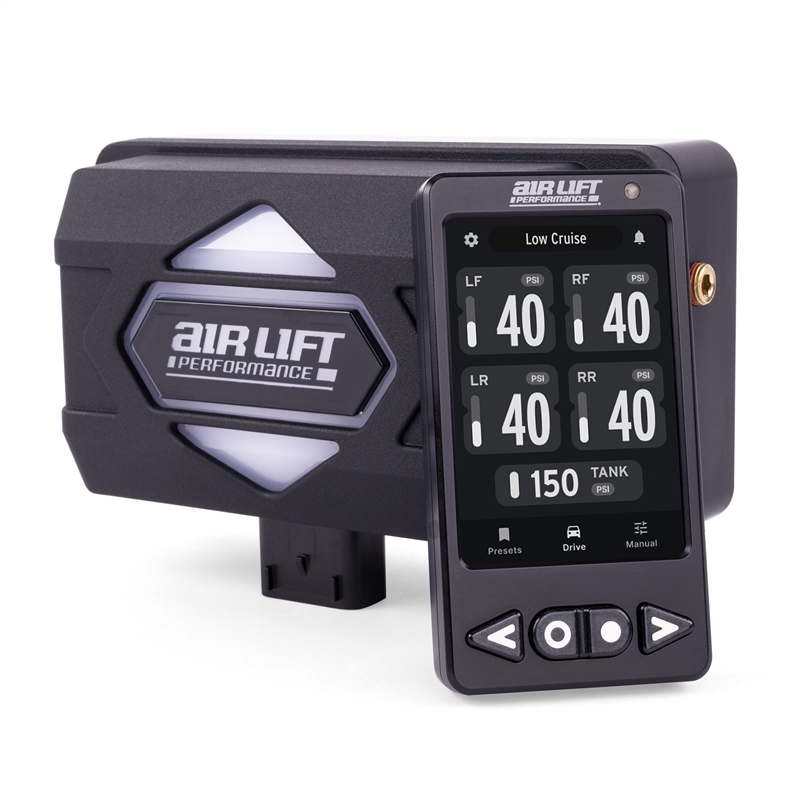

appearance. Paired with a full-color touchscreen controller framed in
anodized aluminum and equipped with four tactile physical buttons, this
system offers immediate control for your presets, 4-corner manual
control, axle adjustments, full air-out and other adjustable functions.

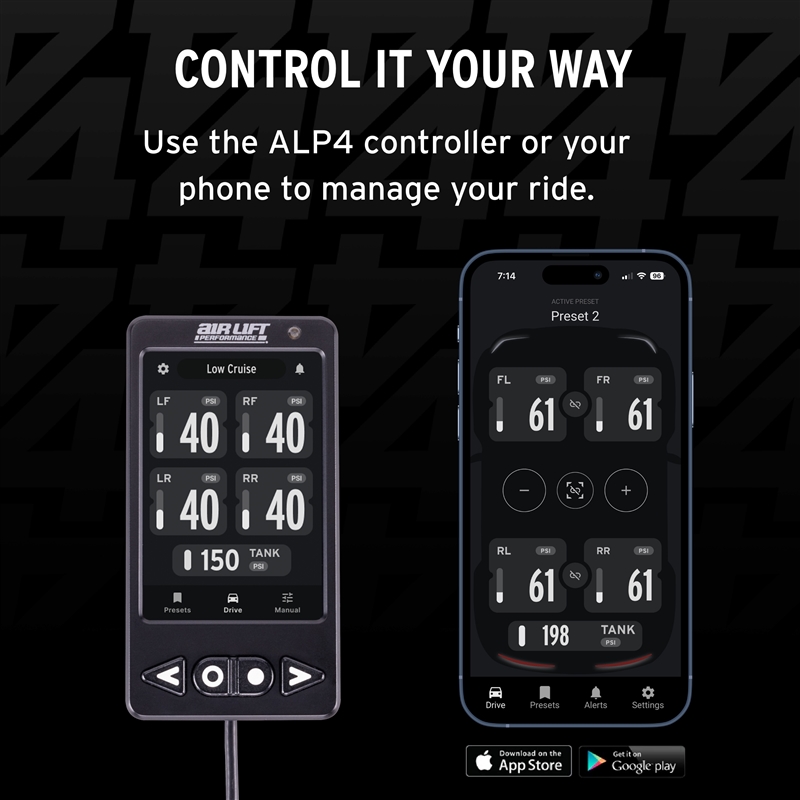

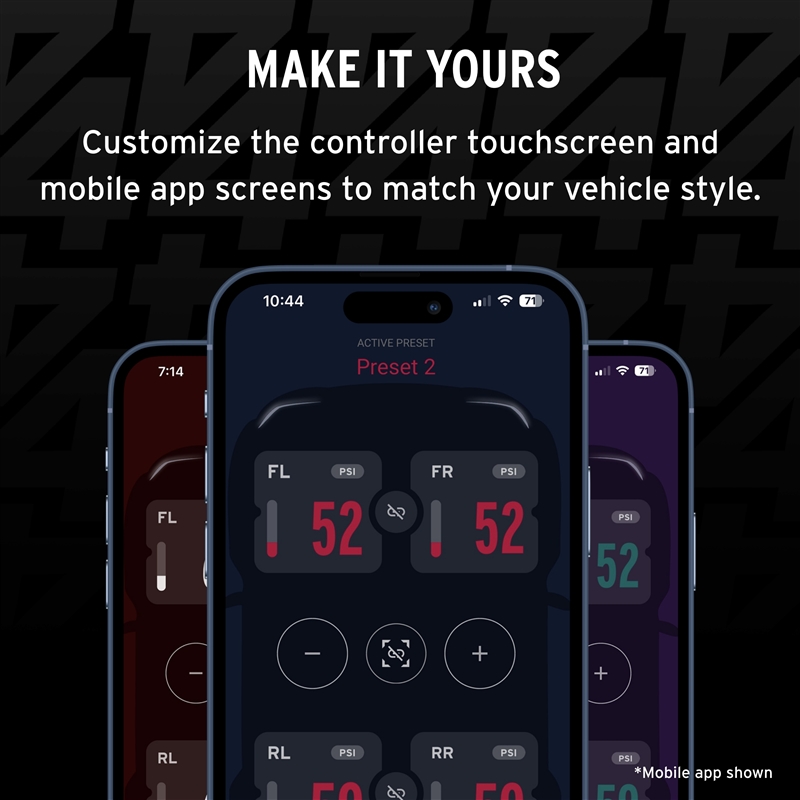

With mobile app integration, ALP4 allows you to use and fine-tune your
setup from anywhere, ensuring ultimate control.

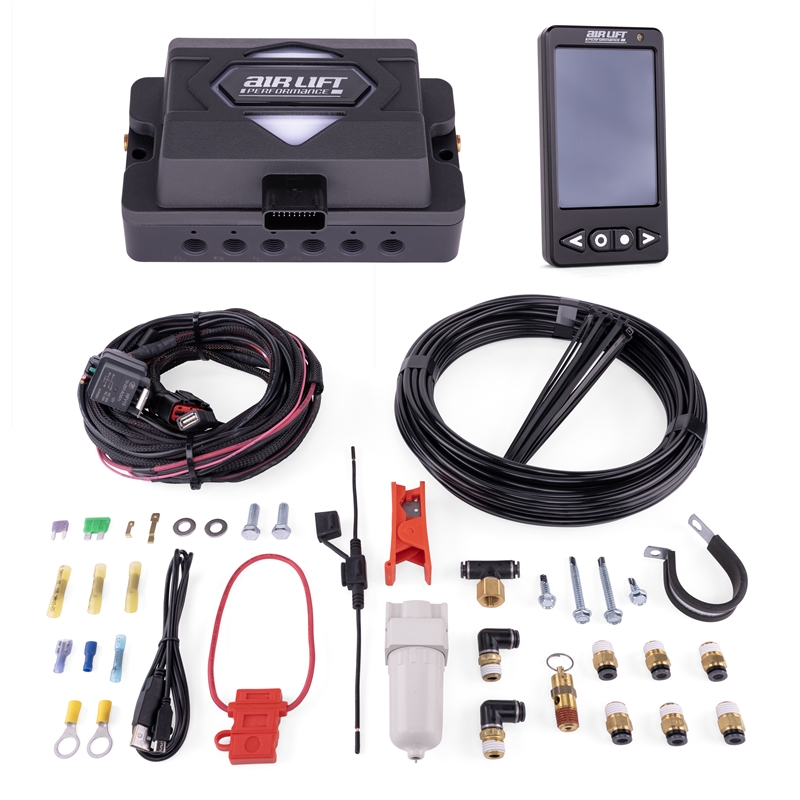

Kit Includes:

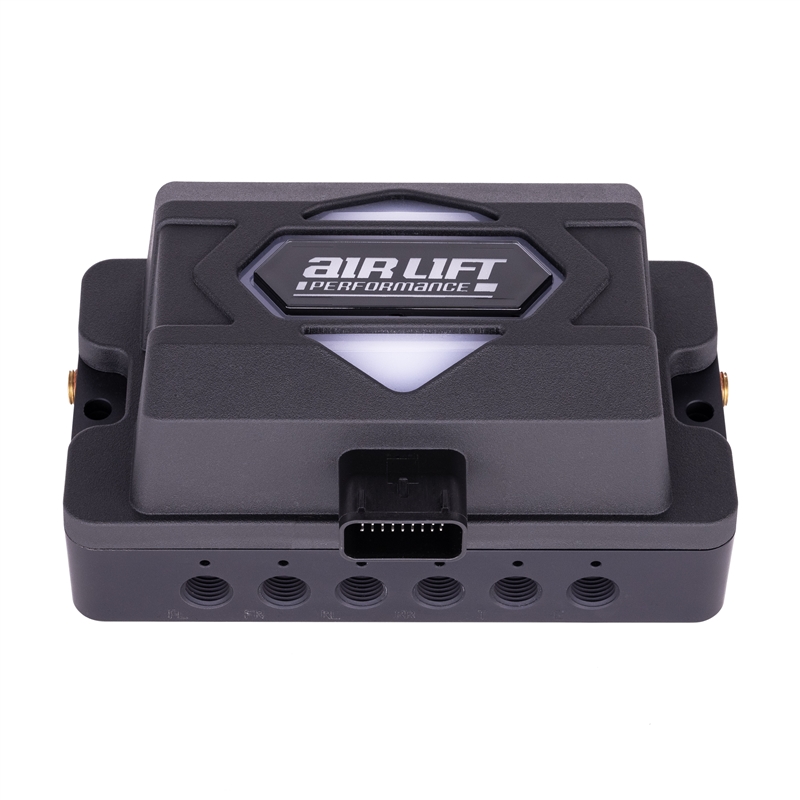

- Threaded port (1/4” FNPT) manifold

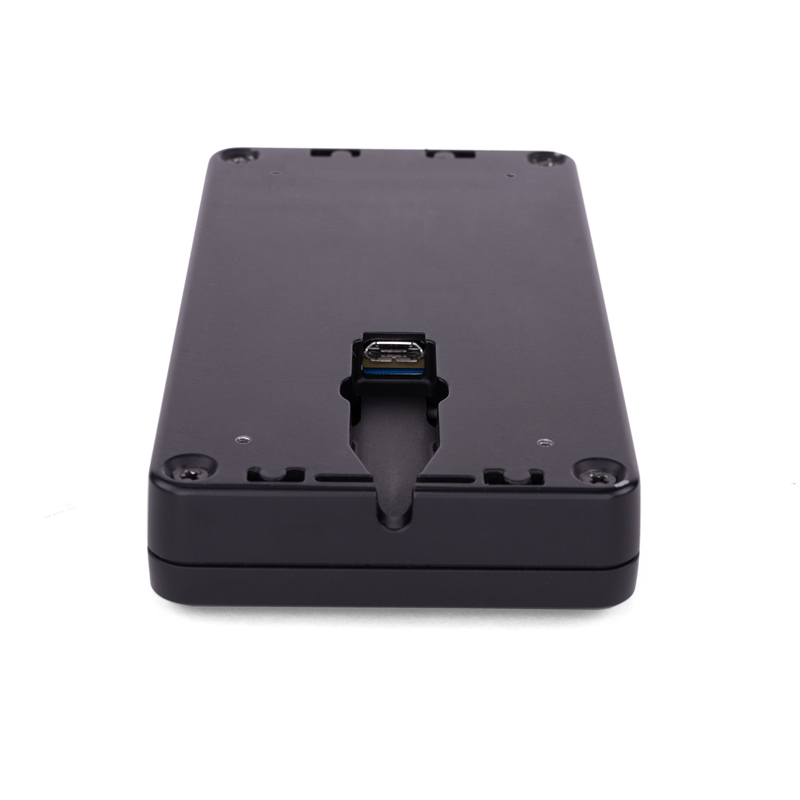

- Touch screen full-color LCD controller with physical buttons
- Main wiring harness
- USB-A to USB-C cable for controller-to-harness connection
- Manifold mounting hardware
- Electrical hardware
- (6) 1/4” MNPT x 3/8” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60) 3/8” DOT air line
ALP4 Features and Benefits:- Faster Processor - More than 3.5x faster and more than
20x more RAM than it's predecessor
- Updated Wireless protocol - With stronger wireless
transmitter for increased range
- Show Mode - Allows full use of the system with the vehicle
off for one ignition cycle
- Standby Mode - Allows for wireless use of the system via
the app with the vehicle off for an adjustable period of time
- Calibrated Adjustment Tolerance - Provides less hunting,
hitting faster and more accurate presets
- Slow Lift Range - Enables pulsed motion allowing for
more controlled movements at critical heights
- Adjustable Pulse Rate - Fine tune adjustment speed
ALP4 Advanced Features-

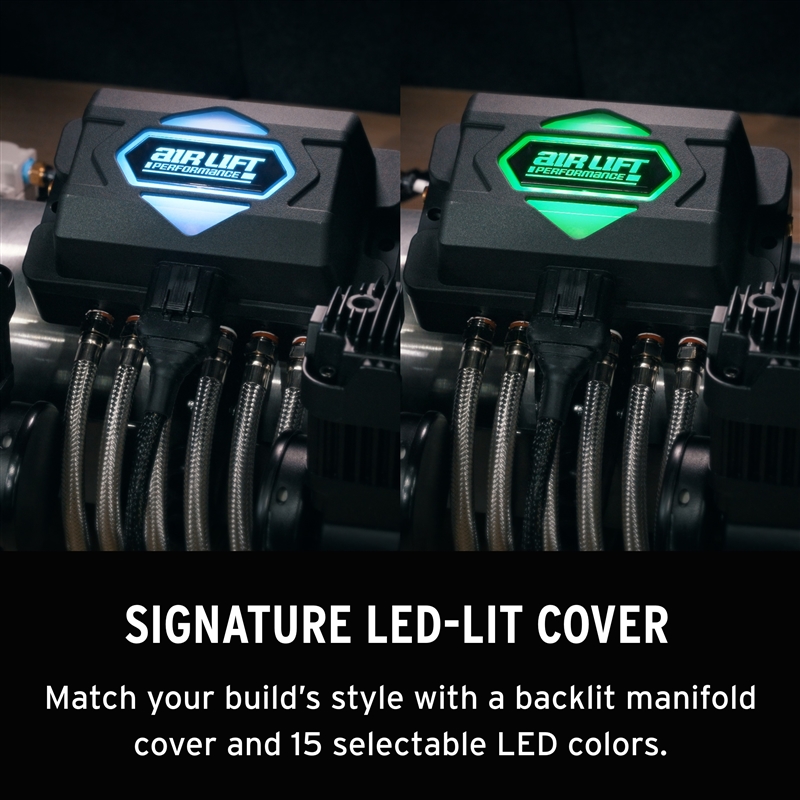

Integrated LED lighting - Manifold and controller
- Self Adhesive Badge - Configurable orientation
- Hidden Hardware - For a sleek, finished look

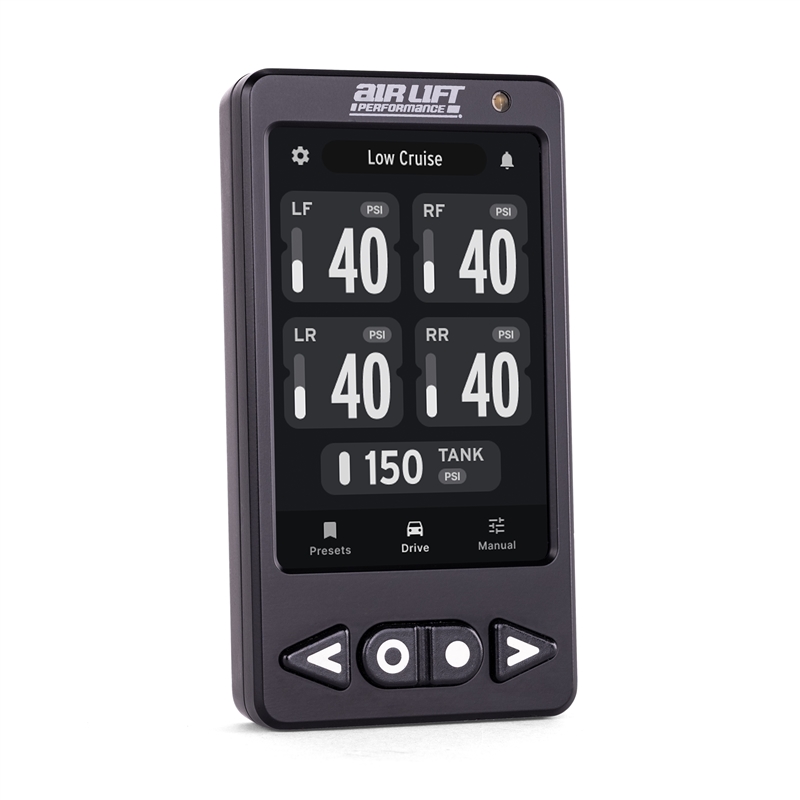

- Improved Controller - 3.5-inch full-color touchscreen
with anodized aluminum case
- Valet Mode - User lockout for valet, secondary drivers,
vehicle maintenance, etc.
- Improved Road Filtering Algorithm - Less hunting,
more accurate, providing better handling of dynamic
driving
- Improved Learning Algorithm - Eliminates the need to re-calibrate system
- Compressor Performance Test - Benchmark and
compare compressor performance over time
- Compressor Crank Offset - Timed offset between
the compressor turning on and the vehicle's starting
electrical system, adjustable from 5 to 30 seconds
- Improved Height Sensor Tool - Helps with ease of
installation of height sensors
ALP4 Add-Ons-
Height Upgrade Kit P/N 27705 - Convert ALP4 from
a pressure-based system to a height-based system
- Integration Harness P/N 27703 - Allows for the
addition of a 2nd compressor to ALP4
