Viair 310 SS Stealth-Series Black Single
Viair Stealth Series Air Compressors



Alternative Views:
List Price: $495.85
Our Price: $369.95



Availability:: Available
Product Code: 31030
Qty:

Description


Viair 310 SS "Stealth Series" Single Air Compressor, 50% quieter, 200 PSI working Pressure, 100% duty Cycle, 23 Max Amps, Air Suspension compressor, Air Ride pump -

Free Shipping, Lower 48 States only.


VIAIR’s all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 310 Stealth-Series compressors are Rhos/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.

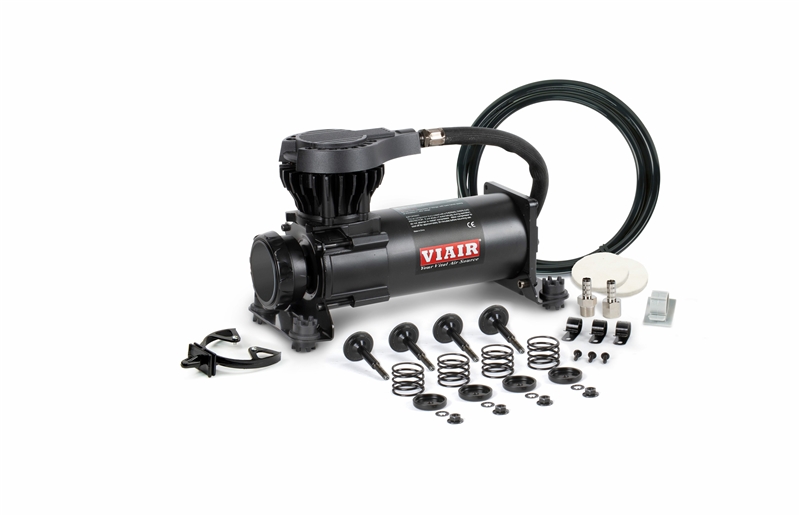

Features & Included Parts:
- (1) 310 Stealth Series Single Black Air Compressor W/ 1/4" NPT Leader Hose & inbuilt check valve
- Thermal Overload Protector
- Black Sleeved Stainless Steel Braided Leader Hoses
- Inline Check Valve

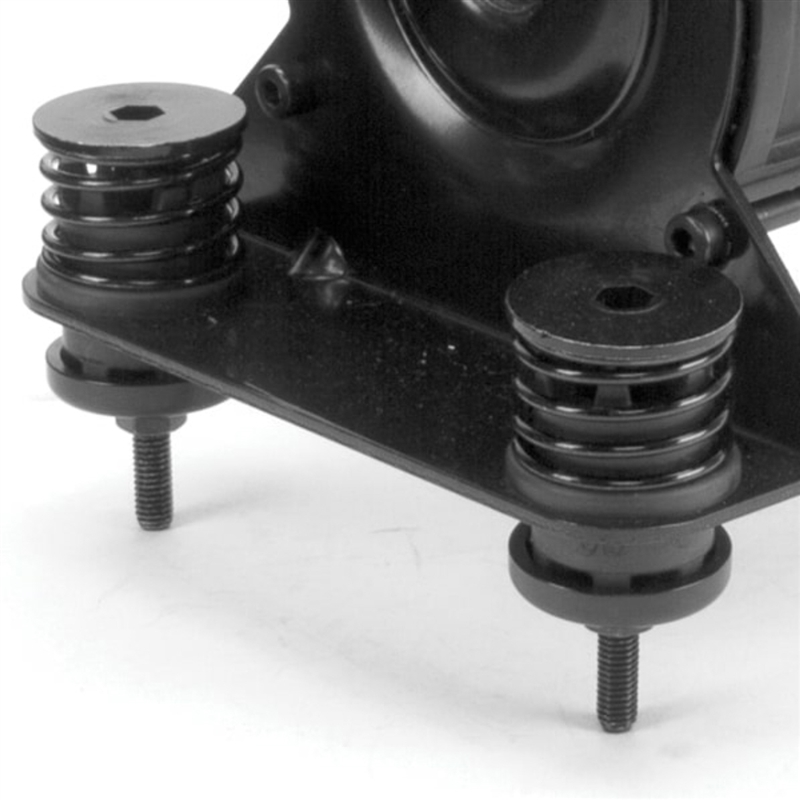

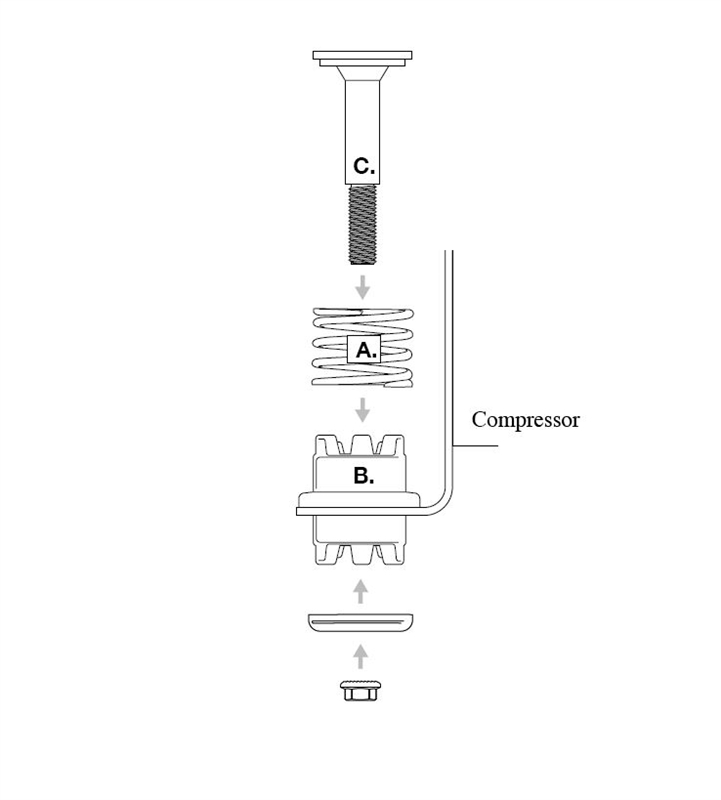

- Spring Loaded Vibration Isolating Feet
- Mounting Hardware
- Airline for Remote Mount Air Filter

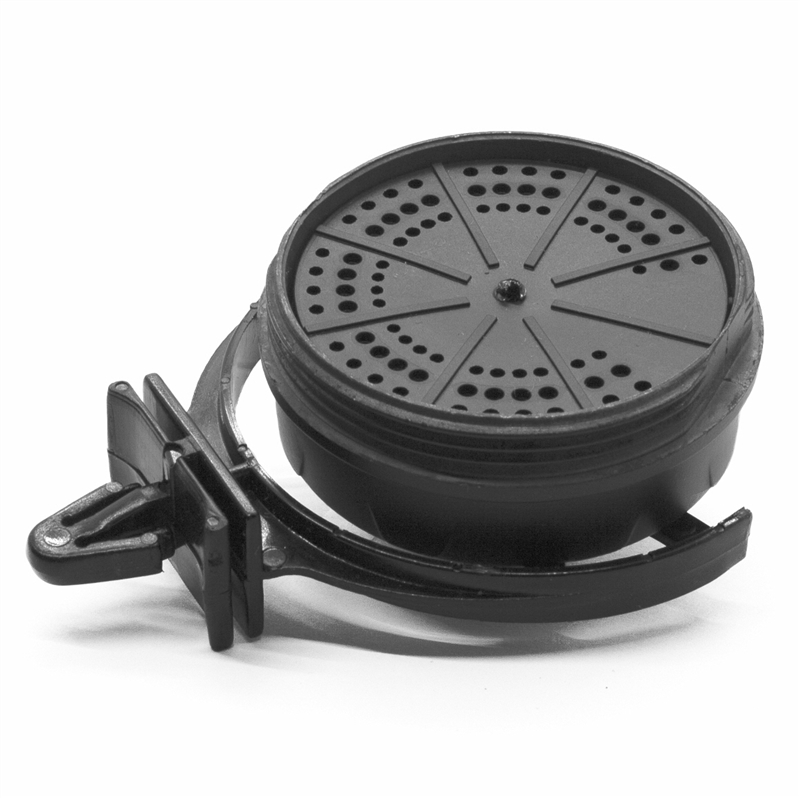

- Remote Mount 6-Stage Air Filter/ Muffler Assemblies
- (1) Replacement Air Filter Elements
- Installation Instructions

Specifications:
- 12-Volt DC
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67

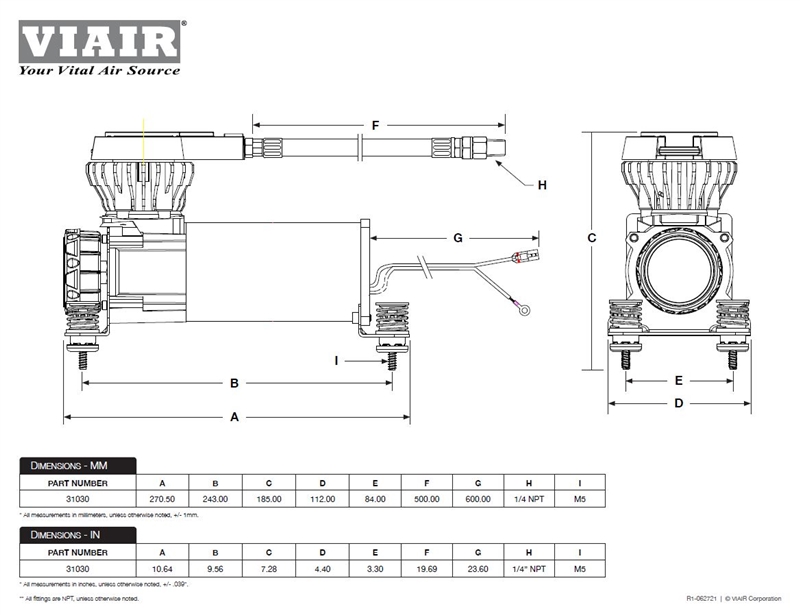

- Dimensions: 10.70" L x 4.4" W x 7.30" H (271.78mm L X 111.76mm W X 185.425mm

Fill Rates:

2.5 Gallon TankFill Rate
0 to 200 PSI 6 min. 40 sec. (± 10 sec.)
165 to 200 PSI 1 Min 30 sec. (± 10 sec.)
5.0 Gallon Tank Fill Rate
0 to 200 PSI 14 min. 10 sec. (± 15 sec.)
165 to 200 PSI 3 min. 25 sec. (± 10 sec.
