Viair Ultra Duty Onboard Air System 200 PSI/ 1.86 CFM 480C Compressor System with 2.5 Gallon Tank - 20001
Ultra Duty  20001 PN with 480C Compressor



Alternative Views:


List Price: $864.95
Our Price: $724.95
Savings: $140.00

Availability:: Currently Unavailable
Product Code: 20001
Qty:

Description


Viair Ultra Duty Onboard Air System (12V, 200 PSI Compressors, 2.5 Gallon tank)- 20001

VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Please Note: Use thread sealant for proper installation.Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 12 ~ 15 ft. lbs.


Features
- 2.5 Gallon 200 PSI VIAIR Air Tank
- 480C Chrome VIAIR Air Compressor
- Tire Inflation Gun with 200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 30ft. Coil Hose with Quick Connects
- Pressure Switch (165 PSI on, 200 PSI off)
- Reducer: 1/8” (F) to 1/4” (M)
- Reducer: 3/8” (F) to 1/4” (M)
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 250 PSI Safety Valve
- 1/4” Drain Cock
- (3) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections All Fittings are NPT rated unless otherwise noted.


Specifications

  • 12V DC
  • Permanent Magnetic Motor
  • Duty Cycle : 100% @ 100 PSI
  • Max Working Pressure: 200 PSI
  • Max Amp Draw: 23 AMPS
  • Ingress Protection: IP67

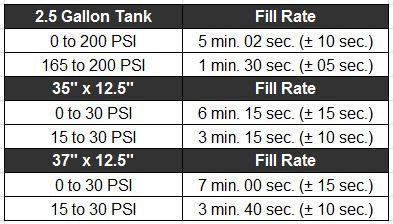

Fill Rates


Click Here to Download Manual

Click Here For Dimensional Drawing

Click Here For Wiring Diagram

Click Here For Plumbing Diagram
