Viair X'Treme Duty Onboard Air System 150 PSI/ 2.68 CFM Compressor System with 2.0 Gallon Tank - 10009
X'Treme 10009 PN with 2-350C Compressor



Alternative Views:


List Price: $1,049.95
Our Price: $859.95
Savings: $190.00


Availability:: Avilable
Product Code: 10009
Qty:

Description


Viair X'Treme Duty Onboard Air System (12V, (2)150 PSI Compressors, 2.0 Gallon tank) - 10009

VIAIR’s X'Treme Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 350C Compressors,100% duty cycle , 2.0 gallon air tank, and all components needed to install basic vehicle-based pneumatic. Fills up to 37" Tires

Please Note: Use thread sealant for proper installation.Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 12 ~ 15 ft. lbs.

Features
- 2.0 Gallon VIAIR Air Tank
- (2) 350C VIAIR Compressors
- 30ft. Coil Hose with Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 0-220 PSI Pressure Regulator
- Blow Gun Air Tool
- Sealed Pressure Switch (110 PSI on, 145 PSI off)
- (2) 40-amp Relays
- (2) T-Fittings (1/4” (M) x 1/4" (F) x 1/8” (F))
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 175 PSI Safety Valve
- 1/4” Drain Cock
- (2) 1/8” BSP to 1/4” NPT
- (4) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections

All Fittings are NPT rated unless otherwise noted.

Specifications

  • 12V DC
  • Permanent Magnetic Motor
  • Duty Cycle : 100% @ 100 PSI
  • Max Working Pressure: 150 PSI
  • Max Amp Draw: 37 AMPS
  • Ingress Protection: IP67

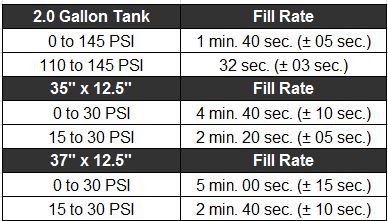

Fill Rates


Click Here
to Download Manual

Click Here
For Dimensional Drawing

Click Here For Wiring Diagram

Click Here For Plumbing Diagram
